Tillage Disc Blades

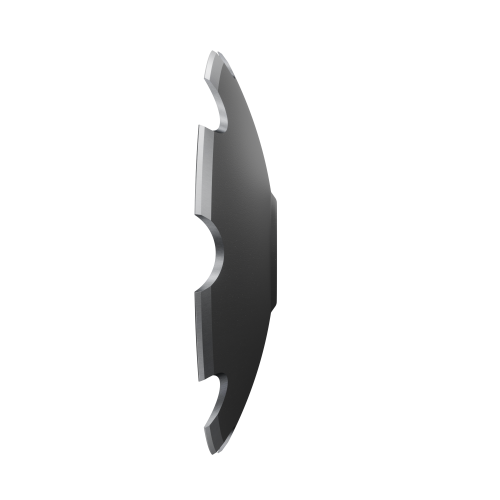

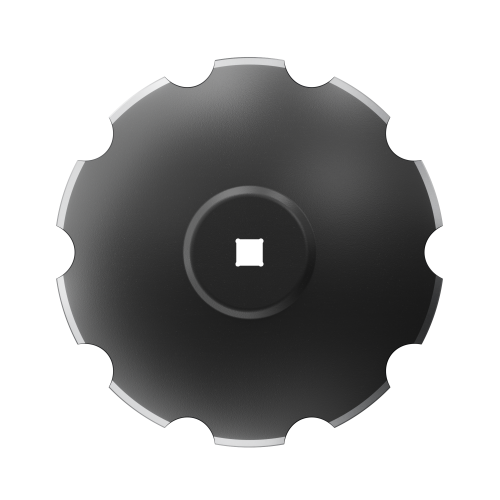

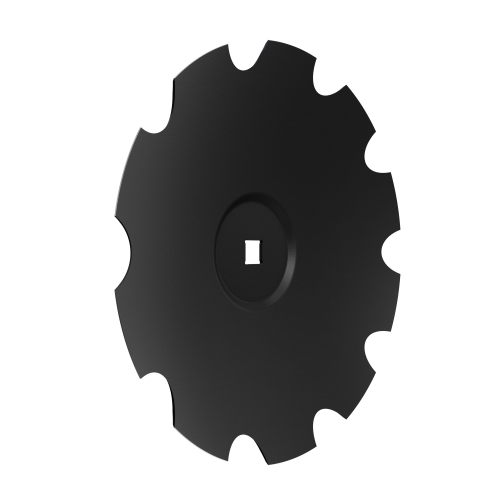

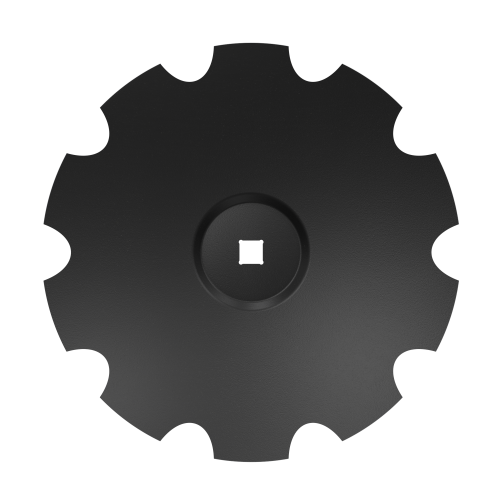

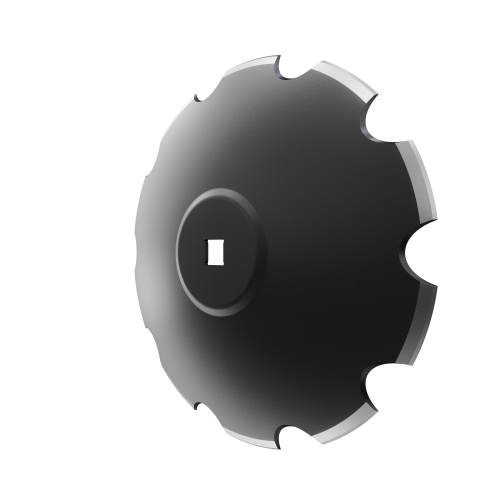

Concave Disc Blades Raised Center

Product description

This disc features a cylindrical central hub designed to directly accommodate a bearing. Its one-piece design simplifies assembly, enhances durability, and reduces the risk of deformation under stress. Thanks to better distribution of rotational forces, it also ensures more uniform wear and increased operational stability. It is an economical, long-lasting, and low-maintenance solution, perfectly suited for demanding conditions.

Simplified assembly with integrated bearing seat
One-piece, durable design
Fewer components, less maintenance
Enhanced strength and even wear distribution

Soil disturbance

Deep

Shallow
Residue Management

Deep

Shallow
Soil penetration

Deep

Shallow
Tillage Practice

Deep
conventional
Shallow
vertical & conventional
Speed

Deep

Shallow

No medias available

Notch Options

The notches of our discs are made following the bevel shape:
improved cutting capacity and durability.

U Shape
Improve traction and cutting capacity compared to plain discs.
V Shape
Best cutting capacity.
« Gothic » Shape
Halfway between U and V shape. Very good self sharpening capacity.
Small notches
Good for cutting crop residue at high speed.
Hybrid notches
Alternating large notches for traction and small notches for cutting.
Flail notches
Allow to work deeper and reduce traction effort.
Lobe discs
Good performance in wetter soils.

Bevel Options

Technologies and shapes

Hot Rolled: Made on rolling mill
Steel structured is preserved. No metal is taken away. Very good durability and self sharpening.
Turned: Made on a lathe
Allow to make sharper bevels than hot rolling, but with reduced durability.
Machined: Made on CNC machine
Allow to make the sharpest bevels. Those « Razor » blades are used on vertical tillage machines.
No Bevel
Some discs can be made without a bevel when there is no need to cut or penetrate the soil deeper.
One Slope
Can be placed on the inside or the outside depending on how the disc work.
Two Slopes
Can be placed on the inside or the outside depending on how the disc work. Self sharpening effect.
Symmetrical
Mostly used on flat discs when mounted perpendicular to the ground.
