Niaux 200

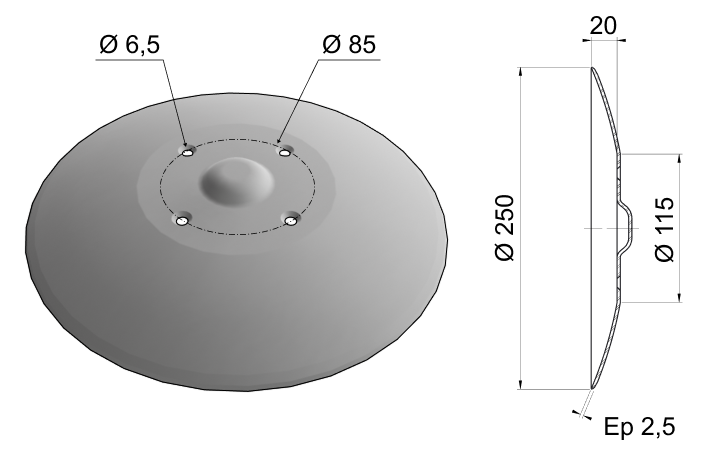

Concave Disc Blade Raised Center Ø250×2.5
ref. D10-0001

Product description

This disc features a cylindrical central hub designed to directly accommodate a bearing. Its one-piece design simplifies assembly, enhances durability, and reduces the risk of deformation under stress. Thanks to better distribution of rotational forces, it also ensures more uniform wear and increased operational stability. It is an economical, long-lasting, and low-maintenance solution, perfectly suited for demanding conditions.

• Simplified assembly with integrated bearing seat
• One-piece, durable design
• Fewer components, less maintenance
• Enhanced strength and even wear distribution

Mecapart ref.	D10-0001
Brand	Niaux 200
Product category	Tillage Disc Blades
Product family	Concave Disc Blades Raised Center
Weight	0.950
Thickness	2.5
Diameter	250
Profile	Concave
Hub design	Raised Center
Radius	R320
Depth (mm)	20.00
Dimension 1 (mm)	115.00
Dimension 2 (mm)	9.00
Edge	Plain
Bevel	Outer
Peripherical Holes	4 round bolt holes 6.5mm
PCD (mm)	85.00
OEM name	KUHN
OEM reference	K3000060
