Niaux 200

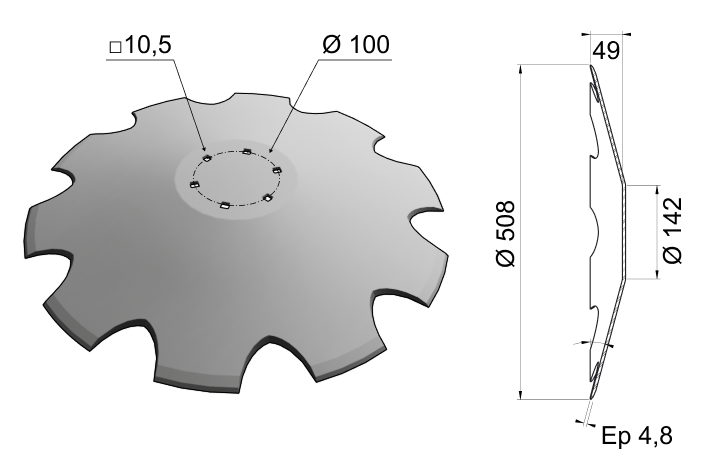

Conical Disc Blade Ø508×4.8
ref. D20-0002
Product description
Thanks to its conical shape, this disc offers optimal soil penetration. It provides a reliable solution for intensive stubble cultivation at high speeds while promoting soil aeration.
- Fast, effective penetration in hard or stony soils
- Less smearing, better soil aeration
- Maintains consistent working depth
- Ideal for irregular terrain
| Mecapart ref. | D20-0002 |
| Brand | Niaux 200 |
| Product category | Tillage Disc Blades |
| Product family | Conical Disc Blades |
| Weight | 6.709 |
| Thickness | 4.8 |
| Diameter | 508 |
| Profile | Conical |
| Hub design | Flat center |
| Depth (mm) | 49.00 |
| Dimension 1 (mm) | 142.00 |
| Edge | Notch |
| Notch | Gothic |
| No. of notches | 10 |
| Bevel | Outer |
| Peripherical Holes | 6 square bolt holes 10.5mm |
| PCD (mm) | 100.00 |
| OEM name | KUHN |
| OEM reference | H2203180 - H2234350 |
