Niaux 200

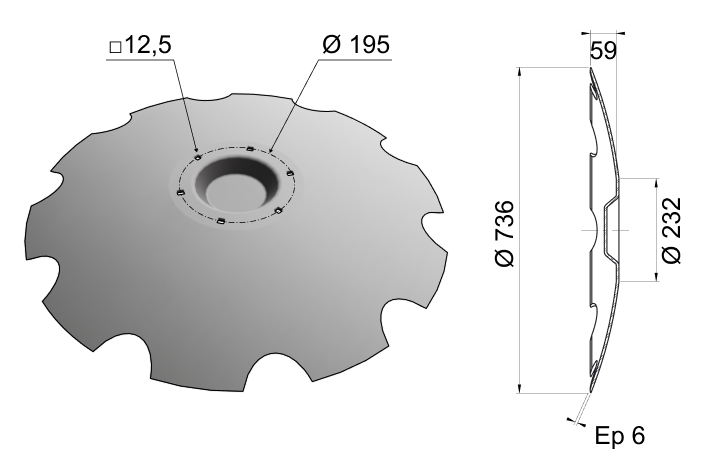

Concave Disc Blade Punched Center Ø736×6
ref. D29-0002

Product description

This disc features a cylindrical central hub designed to directly accommodate a bearing. Its one-piece design simplifies assembly, enhances durability, and reduces the risk of deformation under stress. Thanks to better distribution of rotational forces, it also ensures more uniform wear and increased operational stability. It is an economical, long-lasting, and low-maintenance solution, perfectly suited for demanding conditions.

• Quick mounting with standard bolt patterns
• Functional and economical choice
• Effective in conventional tillage
• Easy to maintain and replace

Mecapart ref.	D29-0002
Brand	Niaux 200
Product category	Tillage Disc Blades
Product family	Concave Disc Blades Punched Center
Weight	18.565
Thickness	6.0
Diameter	736
Profile	Concave
Hub design	Punched center
Radius	R993
Depth (mm)	59.00
Dimension 1 (mm)	232.00
Dimension 2 (mm)	27.00
Edge	Notch
Notch	Elliptical
No. of notches	10
Bevel	Inner
Peripherical Holes	6 square bolt holes 12.5mm
PCD (mm)	195.00
OEM name	LEMKEN
OEM reference	34910017
